Seagate Expansion Portable 2TB USB Hard Drive Data Recovery: A Successful Case Study
At Disk Doctors UK, we specialize in recovering lost data from all kinds of storage media—even when it seems beyond repair. One recent case involved a Seagate 2TB USB hard drive data recovery. The hard drive was suffering from read errors and firmware corruption. Thanks to advanced tools and meticulous diagnostics, we were able to restore all critical data for the client. Here's how we did it.
Device Details and Symptoms

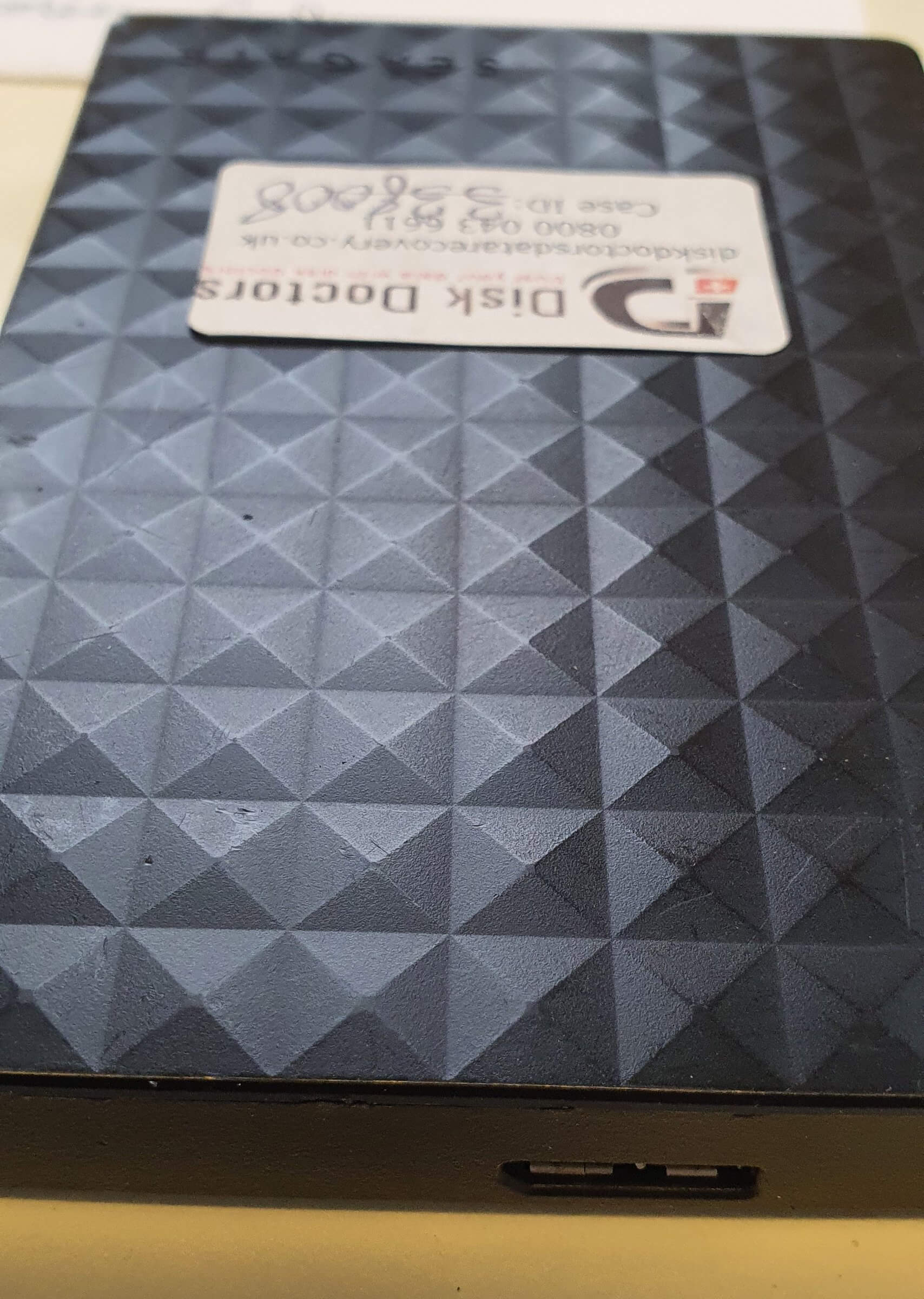

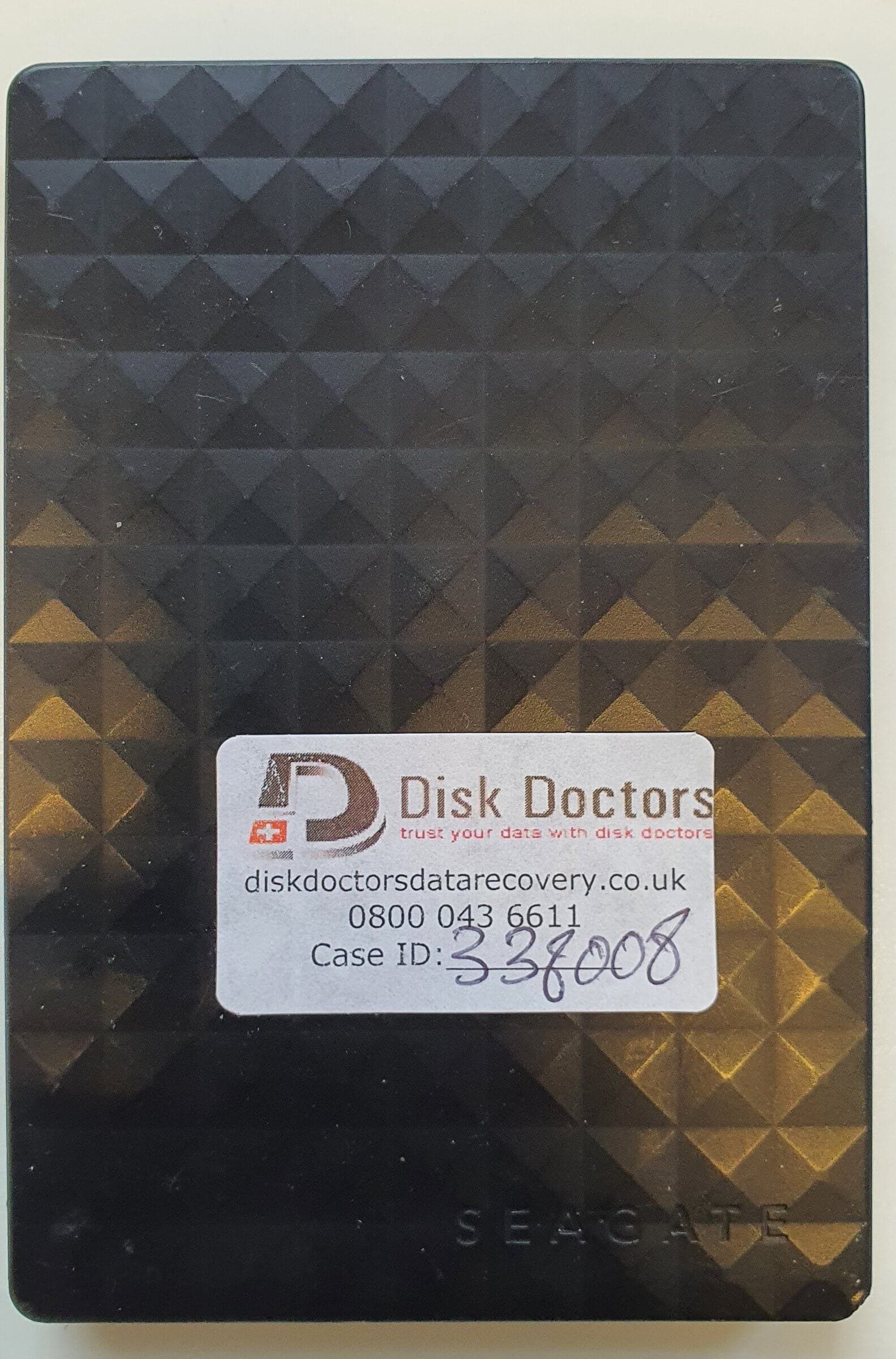

The affected device was a Seagate Expansion Portable Drive featuring:
- Model: ST2000LM007
- Capacity: 2TB
- Firmware Version: SBK2
- Interface: USB 3.0 (2.5” form factor)
The client reported that the drive was intermittently disconnecting and eventually failed to mount altogether. No clicking sounds were present, but attempts to access the data via USB resulted in read errors and system timeouts.
Seagate 2TB USB hard drive data recovery
Initial Evaluation & Diagnosis
During our free evaluation, we determined that the USB interface was no longer viable for direct access. We carefully extracted the internal ST2000LM007 SATA drive from its enclosure and ran a series of hardware-level tests using specialized tools.
Key Findings:
- Service Area Corruption: The firmware stored in the service area was inaccessible, preventing normal operation.
- Bad Sectors: Numerous physical sectors were unreadable, requiring deeper intervention.
- Read Failures: Attempts to access the user area repeatedly resulted in timeouts and failed reads.
At this point, recovery through conventional software was impossible. We transitioned to a hardware-assisted recovery approach using our PC3000 data recovery platform.
Advanced Recovery Strategy
Our engineers implemented a multi-step recovery process designed to restore access to the firmware and extract user data safely:
1. Firmware Unlocking
Using the PC3000 tool, we gained access to the drive’s system area, which stores operational firmware modules. This step was crucial in bypassing startup errors and accessing internal diagnostics.
2. Parameter Extraction
All firmware parameters and configuration modules were loaded and backed up. These provide essential instructions for the drive's read/write behavior and head positioning.
3. Service Area Backup & Repair
A full backup of the service area was created to ensure data integrity during the repair process. We patched corrupted modules and adjusted key attributes to stabilize the firmware environment.
4. Head Map Construction
We constructed a custom head map to isolate functional read/write heads from failing ones. This significantly improved data access reliability and reduced the risk of additional damage.
5. Safe Cloning & File Extraction
We initiated a sector-by-sector clone of the drive onto a healthy target disk. Simultaneously, we began extracting user data. This two-pronged approach protects the original drive while facilitating faster recovery.
6. Handling Read Errors
Read failures were mitigated using advanced retry algorithms, adaptive head usage, and timeout tuning. Our engineers monitored the process in real time to catch transient errors and adjust extraction logic accordingly.
Recovery Outcome
Thanks to our systematic approach and diagnostic precision, we successfully recovered 100% of the user’s critical data—including documents, media files, and application data. The final output was verified for completeness and integrity before being delivered to the client.
Client Impact:
The recovered data included irreplaceable financial documents and personal photos. The client was thrilled to receive their files, which they feared were permanently lost.
Why Firmware Failures Matter
Many users aren’t aware that hard drives rely on embedded firmware stored in hidden service areas. When this firmware is corrupted—due to sudden power loss, physical strain, or manufacturing flaws—the drive may stop responding even though the platters and heads remain intact.
Unlike simple software recovery, resolving firmware-level faults requires specialized tools and deep technical expertise. At Disk Doctors UK, we regularly handle cases that other providers turn away due to firmware complexity.
🛡️ How Disk Doctors UK Protects Your Data
We don’t believe in one-size-fits-all solutions. Every recovery operation is tailored to the device, fault type, and client priorities. Here’s what sets us apart:
- 20+ Years of Experience: Decades of hands-on data recovery under our belt.
- Specialized Equipment: Tools like PC3000, and proprietary imaging software.
- Secure Environment: All recoveries are performed in a controlled lab with anti-static measures.
- Transparent Communication: We keep you informed at every stage—no jargon, no hidden fees.
Final Thoughts
If you require Seagate 2TB USB hard drive data recovery—or any USB hard drive—is showing symptoms like beeping, random disconnection, or total failure to mount, don’t panic. These issues often point to service area faults or bad sectors, both of which are recoverable with the right expertise.
At Disk Doctors UK, our goal is simple: to help you get your data back safely and professionally.
Need Help With Your Seagate Drive?
Whether it’s firmware corruption, accidental deletion, physical damage, or read errors—we’ve seen it all. Contact us today for a free evaluation and let our expert team assess the issue. With over two decades of data recovery experience, your information is in trusted hands.
📧 Contact our data recovery london team at 02030869512 or submit your case online at the top right of the page for Seagate 2TB USB hard drive data recovery.
Seagate 2TB USB hard drive data recovery🔐 Data Privacy and Confidentiality
At Disk Doctors UK, we understand that data recovery often involves sensitive and personal information. That’s why we take data protection and confidentiality extremely seriously, adhering to the highest standards set forth by UK data privacy laws, including the Data Protection Act 2018 and UK GDPR regulations.
All recovered data is handled in secure, access-controlled environments, and we retain client files for 10 days only as backup unless explicitly instructed for immediate deletion. Whether you’re an individual or a business, you can trust that your information will remain confidential, protected, and respected throughout every stage of your recovery journey.
